Name: Signature Pad - Kappa with Fingerprint Sensor
SKU: 4376
Price: 409.50 GBP
Availability: OutOfStock

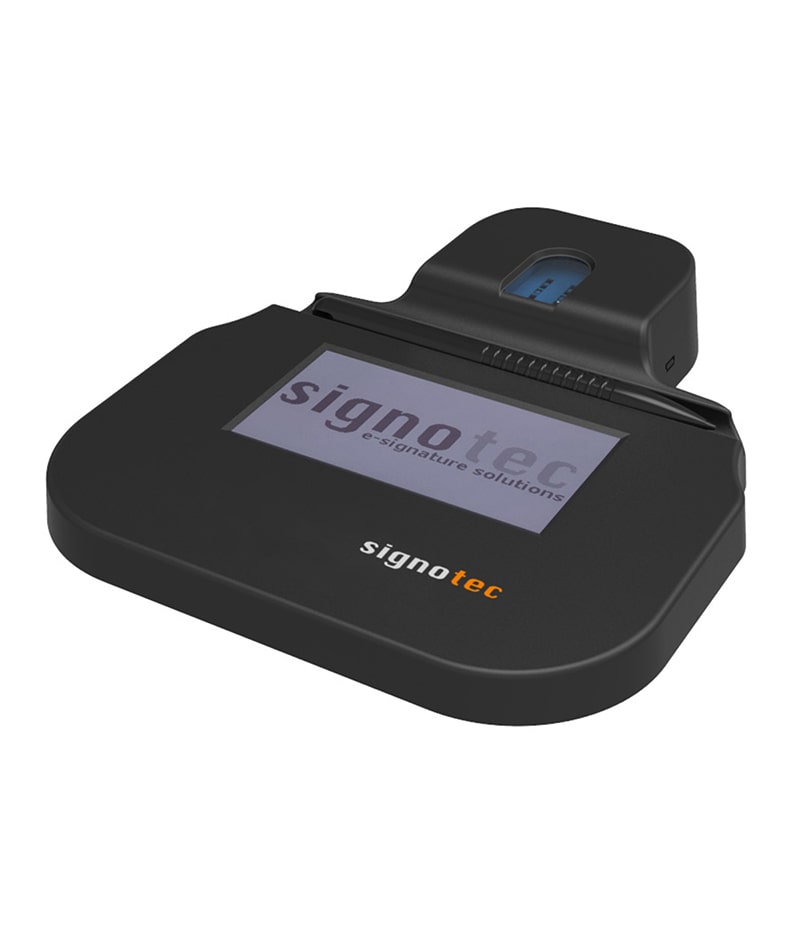

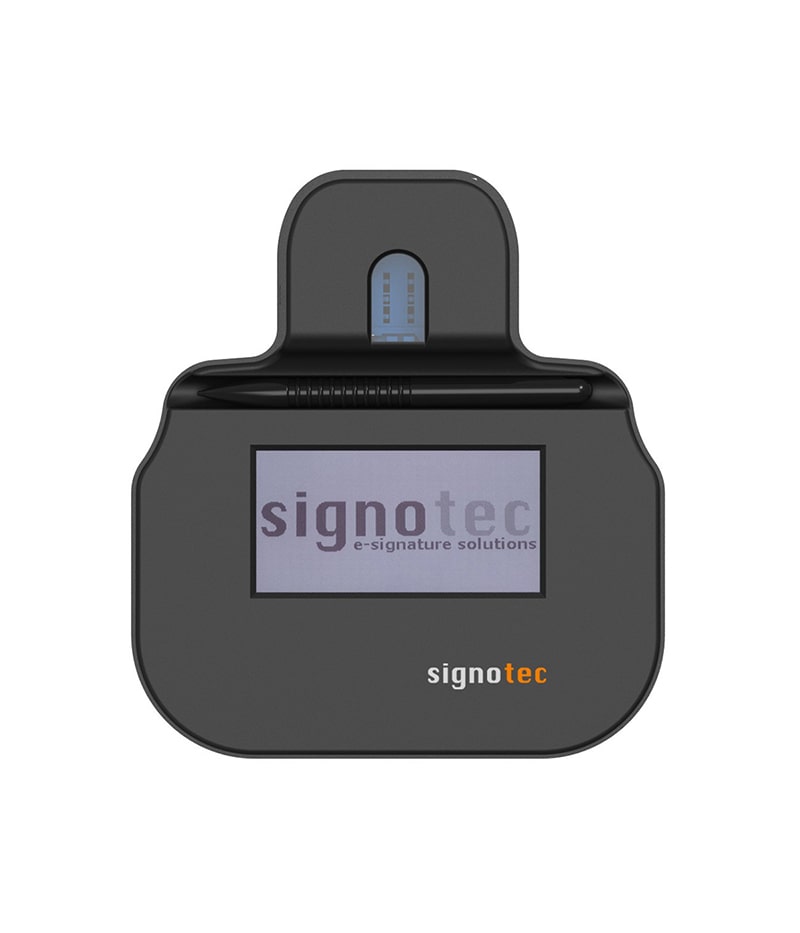

The LCD Signature Pad “Kappa” Signature Pad is designed for applications Use Kappa for precise capture of a handwritten signature and a fingerprint – perfect for a secure process at your point-of-sale (POS). The Kappa is a hybrid device developed by signotec, consisting of a signature pad and a fingerprint sensor. It is particularly compact with its external dimensions of 175 x 194 x 30 mm and sets new standards in terms of hybrid functionality.

The Kappa uses the same sensor as the Sigma, so you can capture even large signatures without getting to the limit of the sensor. This is essential for a realistic capturing of the signature. In addition, extensive text information can be displayed. The additionally integrated fingerprint sensor of the established manufacturer Futronic can be controlled separately and enables a high-resolution capture of fingerprints. Despite the combination of two devices, only a single USB port is needed.

FINGERPRINT SENSOR
The Kappa signature pad has a RTP-Sensor for signature capture as well as a Futronic Fingerprint Sensor. Both sensors can be integrated with the manufacturer’s SDKs. The SDK for signature capture is available at signotecs website. The SDK for fingerprint is available at Futronics website (see below).

Technical Specifications

DISPLAY
Type	10,5 cm (4″) Mono-LCD, optional with LED backlight
Colours	Monochrome
Resolution	320 x 160 pixels
Scroll-Function	No

SIGNATURE SENSOR
Type	RTP (Resistive-Touch-Panel)
Pen	Pen with special, resilient pen tip (changeable)
Surface	Special foil surface for RTP sensors
Life expectancy	approx. 1 Million Signatures
Pressure Stages	1.024
Sample Rate	500 Hz, 4D Samples (x, y, z, t)
Active Signing Area	92 x 45 mm
Resolution	4.096 x 4.096 px. absolute ≙ 2.214 x 1.130 ppi

FINGERPRINT SENSOR
Manufacturer	Futronic
Type	FS80 / FS81
Scanning Window Size	16 x 24 mm
Resolution	480 x 320 pixels, 500 dpi
Light Source	Infrared LED
Integration	Futronic SDK http://www.futronic-tech.com/product_sdk_win.html

SECURITY
Encryption	AES- and RSA-Encryption
Secure Mode	Real-time display of the signature without usable biometrics
PDF-Signature	RSA signature creation device inside the pad
Hash-Algorithms	SHA-256 und SHA-512
More information can be found below in the tab “Security features”.

CONNECTION
Connection	USB (approx. 2,0 meters cable length)
Power Supply	USB
Network (TCP/IP)	Yes, with optional signotec USB-Ethernet-Adaptor
Terminal Server / Citrix	Yes, optional with hardware FTDI chip or signotec vCOM driver
Citrix Virtual Channel	Yes, optional with signotec Virtual Channel driver

OTHERS
Dimensions (W x D x H)	194 x 175 x 30 mm
Weight	approx. 400g
Slideshow	Yes, you can configure one standby image inside the pad
Warranty	2 years

RSA-Security Features

The signotec signature pads have the highest security mechanisms* available. This allows a complete chain of evidence in dispute. Depending on the integration, different techniques are used:

PDF documents** can be signed inside the pad and not in the insecure environment of the PC.
The biometric data of the signature can be RSA-encrypted inside the pad using a public key.
RSA-signature of the displayed content and signature.
Upon delivery, each pad has a separate and unique RSA certificate for signing.
Storing of custom RSA-certificates inside the pad.
The pad can generate a RSA certificate.
Supported schemes are RSA PKCS # 1 v1.5 (with or without the hash OID), PKCS # 1 v2.1
Certificates can be certified by a Root Authority
Supported hash algorithms are SHA-1, SHA-256 and SHA-512.
