SigLite Color 4.3 Signature Pad

SigLite Color 4.3 Signature Pad

0

£341.70

Data Encryption AES optional, FIPS-197 compliant
Dimensions 6.9” x 5.5” x 1.25” 206mm x 180mm x 36mm
Signing Area 3.9” x 2.2” 118mm x 86mm

Category:
Description

Product Description

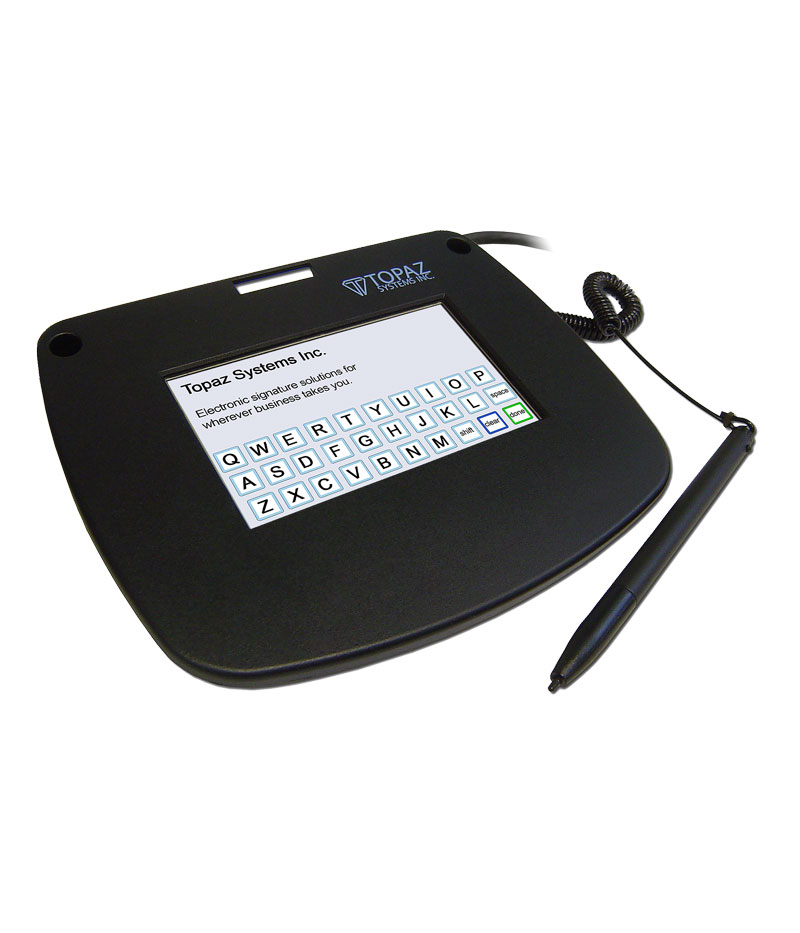

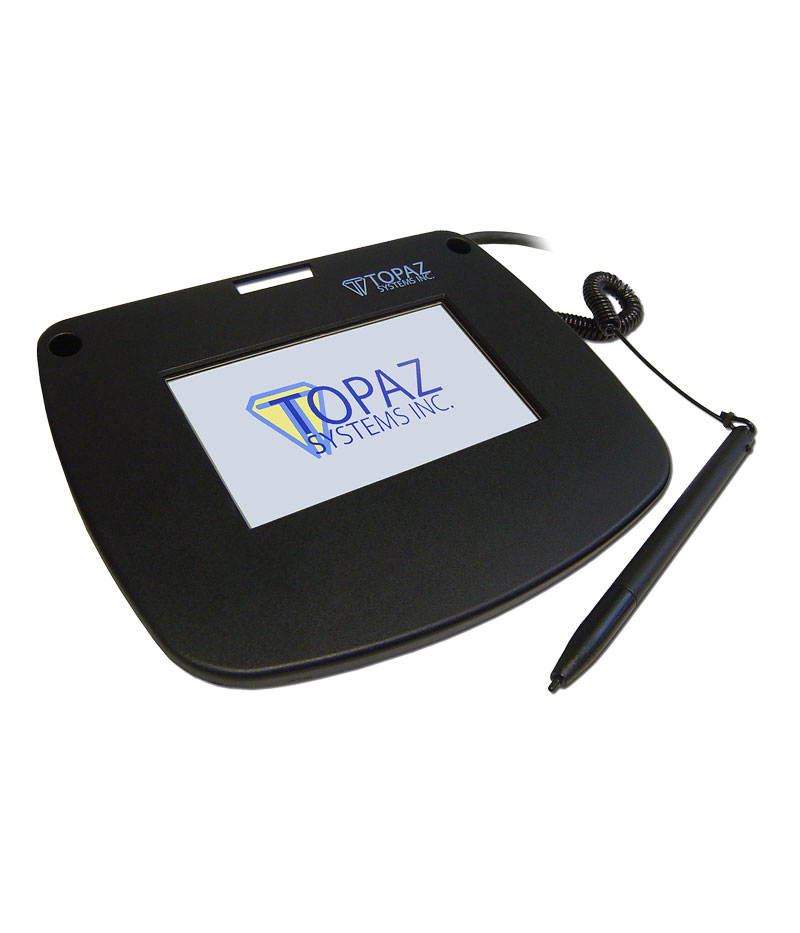

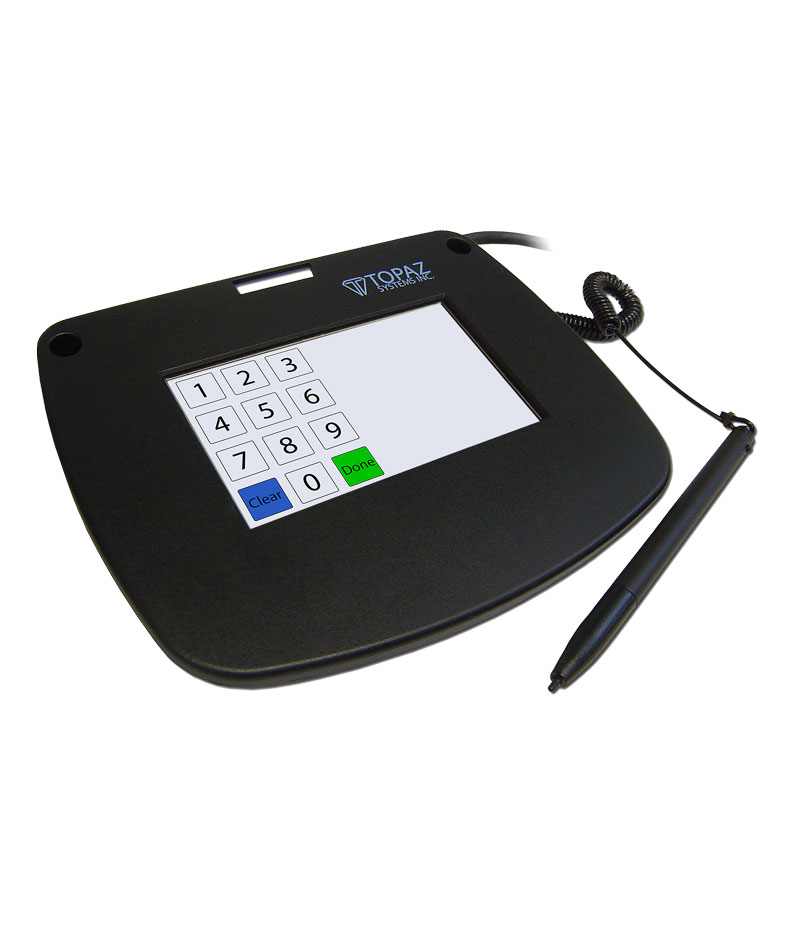

SigLite Color 4.3 is an advanced biometric electronic signature pad with full-color 480×272 widescreen backlit TFT display. Port-powered in both HID and virtual-serial USB versions, the SigLite Color 4.3 sports a thin, small, and attractive footprint, optimized large hand rest, dual vertical pen holders, snap-in travel pen-and-tether storage, and sloped ergonomic signing surface with easy slide-in screen protector. Featuring an LCD touchpad, these models show the signature on the signature pad, as well as the computer screen.

The Topaz SigLite Color 4.3 is an advanced electronic signature pad with 4.3 inch, full-color TFT VGA (480 x 272) LCD that captures and displays “electronic ink” under the pen tip for a natural signature. Bundled secure software APIs provide for interactive text, graphics, and pen-tap hotspots and checkboxes which enable users to navigate screens, read agreements, and select preferred options before signing.

Features

The SigLite® Color 4.3 models are our largest colour SigLite model, with advanced biometric electronic signature pads with 4.3″ inch, full-color backlit TFT VGA (480 x 272) LCD.

With the tempered glass LCD display, these models show the signature on the signature pad, as well as the computer screen.

Bundled secure software APIs provide for interactive text, graphics, and pen-tap hotspots and checkboxes, which enable users to navigate screens, read agreements, and select preferred options before signing.

The SigLite® Colour 4.3 features all the high-quality biometric and forensic capture techniques of a SignatureGem tablet but with a low-ercost touchpad and stylus in place of the more rugged digitizing pen and surface of the SigGem® tablet series.

The Backlit Colour LCD model has a 4.3″ transflective full-colour LCD screen with a bright backlight for improved viewing in any ambient lighting conditions.

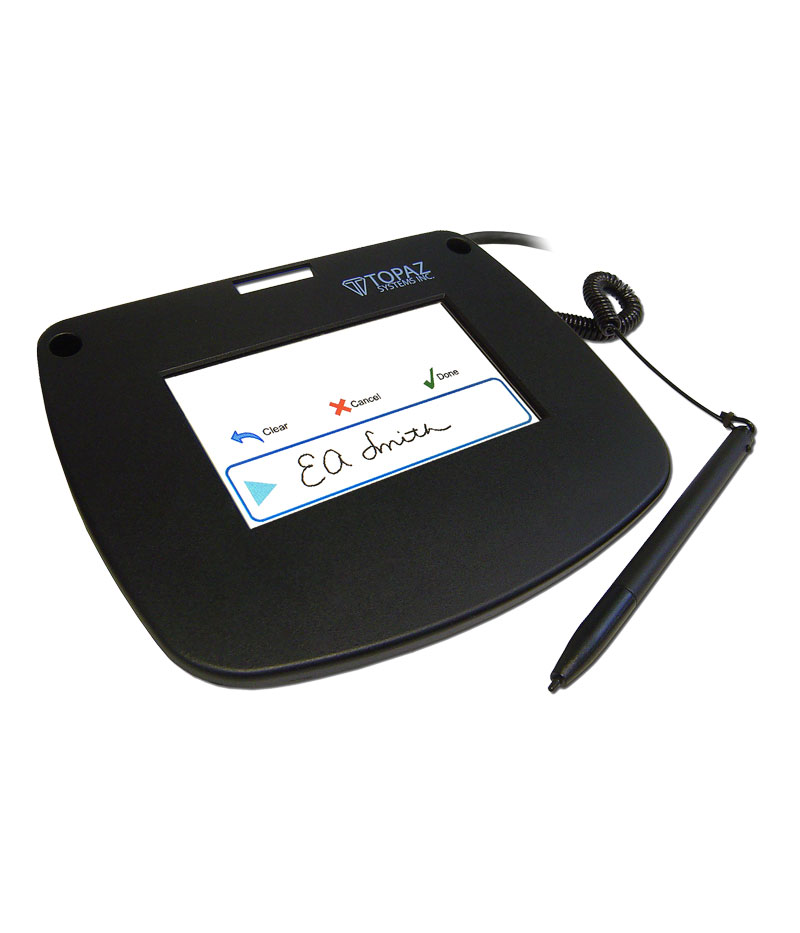

*Signatures appear on the pad screen under-the-pen as the user signs. In addition, the LCD display can be used to display information to the user, and can also display on-screen buttons, hot-spots and checkboxes.

The “-BHSB” model has both Serial and HID USB connections available for the model. There is a USB device which uses the Human Interface Device (HID) class of USB driver built into Microsoft Windows and other leading operating systems and computers.

There is also a serial connection. It connects to a PC or Termial via an RS232 connection (pad has a female 9-pin connector – see image above). Typically less common than the USB connection, Serial is having somewhat of a comeback in the expanding Remote Access environment, being ideal for Citrix and/or Terminal services architecture.

This model has a two-year Manufacturer’s Warranty. However, even after this warranty period has passed (or if the repair is outside the terms of the warranty) we can offer a lifetime service to repair or refurbish the unit (if possible) for a modest charge.

Technical Data

Warranty2-years, with renewal option
Sensor3rd-generation touch-screen Rated to 1 million signatures With slide-in screen protector
Pen Rugged, passive pen & tether Patented, battery-less 1024 pressure level option
Resolution & Conversion RateExceeds industry standards Programmable PPI
Data EncryptionAES optional, FIPS-197 compliant
Dimensions6.9” x 5.5” x 1.25” 206mm x 180mm x 36mm
Signing Area3.9” x 2.2” 118mm x 86mm
Authentication CapabilityForensic quality .SIG data capable of examination and authentication with our software
Additional information
Dimensions206 × 180 × 36 mm
