SigLite Backlit LCD 1×5 Serial

£229.50

Sensor : 3rd-generation touch-screen, Rated to 1 million signatures
Resolution & Conversion Rate : Exceeds industry standards, Programmable PPI
Signing Area : 4.4” x 1.3” | 112mm x 33mm

SigLite LCD with Serial data output is Topaz’s low-cost pressure-sensitive electronic signature capture pad. SigLite features all the high-quality biometric and forensic capture techniques of a SignatureGem LCD tablet but with a low-cost touchpad and stylus in place of the more rugged digitizing pen and inert tempered glass surface of the SigGem tablet series.

SigLite® LCD 1×5 features all the high-quality biometric and forensic capture techniques of a SignatureGem LCD tablet but with a low-cost touchpad and stylus in place of the more rugged digitizing pen and inert tempered glass surface of the SigGem tablet series.

The Backlit LCD model has a 1″ x 5″ transflective LCD screen with a bright backlight for improved viewing in any ambient lighting conditions.

*Signatures appear on the pad screen under-the-pen as the user signs. In addition, the LCD display can be used to display information to the user, and can also display on-screen buttons, hot-spots and checkboxes.

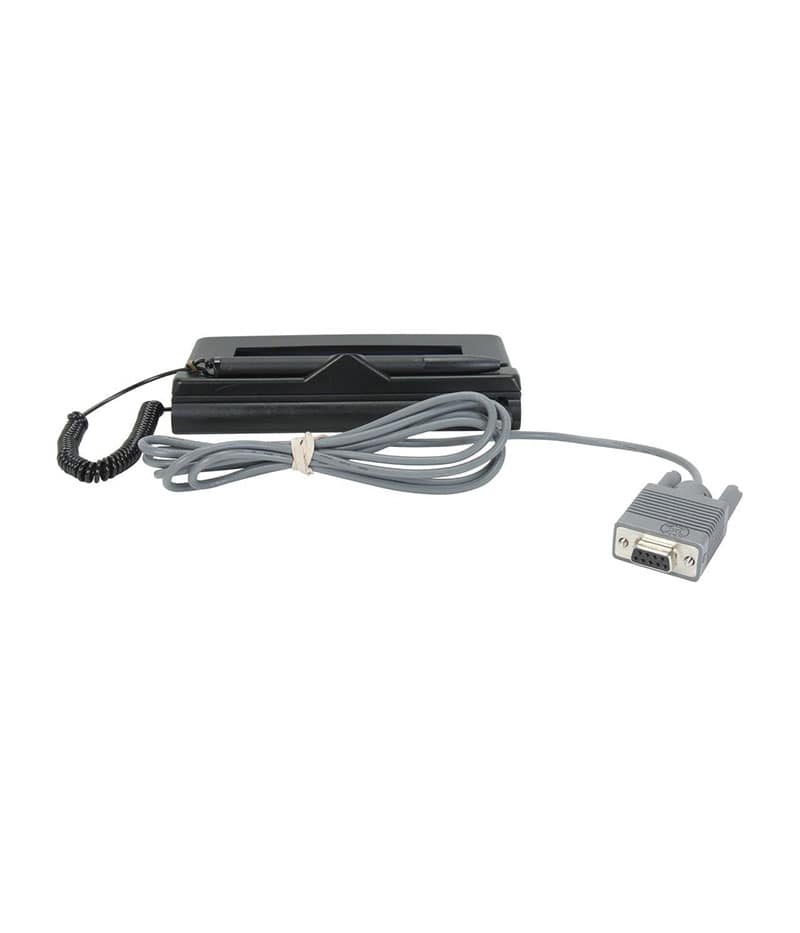

The “-B” model is a Serial device. It connects to a PC or Termial via an RS232 connection (pad has a female 9-pin connector – see image above). Typically less common than the USB connection, Serial is having somewhat of a comeback in the expanding Remote Access environment, being ideal for Citrix and/or Terminal services architecture.

This model has a two-year Manufacturer’s Warranty. However, even after this warranty period has passed (or if the repair is outside the terms of the warranty) we can offer a lifetime service to repair or refurbish the unit (if possible) for a modest charge.

Technical Data

Warranty	2-years, with renewal option
Sensor	3rd-generation touch-screen, Rated to 1 million signatures
Pen	Rugged, passive pen & tether, Patented, battery-less
Resolution & Conversion Rate	Exceeds industry standards, Programmable PPI
Dimensions	6.0” x 3.8” x 1.4” \| 152mm x 95mm x 36mm
Unit Weight	310g
Boxed Weight	620g
Box Dimensions	235x 165x 75mm
Signing Area	4.4” x 1.3” \| 112mm x 33mm
Authentication Capability	Forensic quality. SIG data capable of examination and authentication with our software
