SigLite Backlit LCD 1×5 HID USB

Name: SigLite Backlit LCD 1x5 HID USB
SKU: 5320
Price: 229.50 GBP
Availability: InStock

£229.50

Sensor : 3rd-generation touch-screen, Rated to 1 million signatures
Resolution & Conversion Rate : Exceeds industry standards, Programmable PPI
Signing Area : 4.4” x 1.3” | 112mm x 33mm

Category: LCD Pads

SigLite LCD 1x5 Serial

SigLite Backlit LCD 1x5 Serial

Description

Product Description

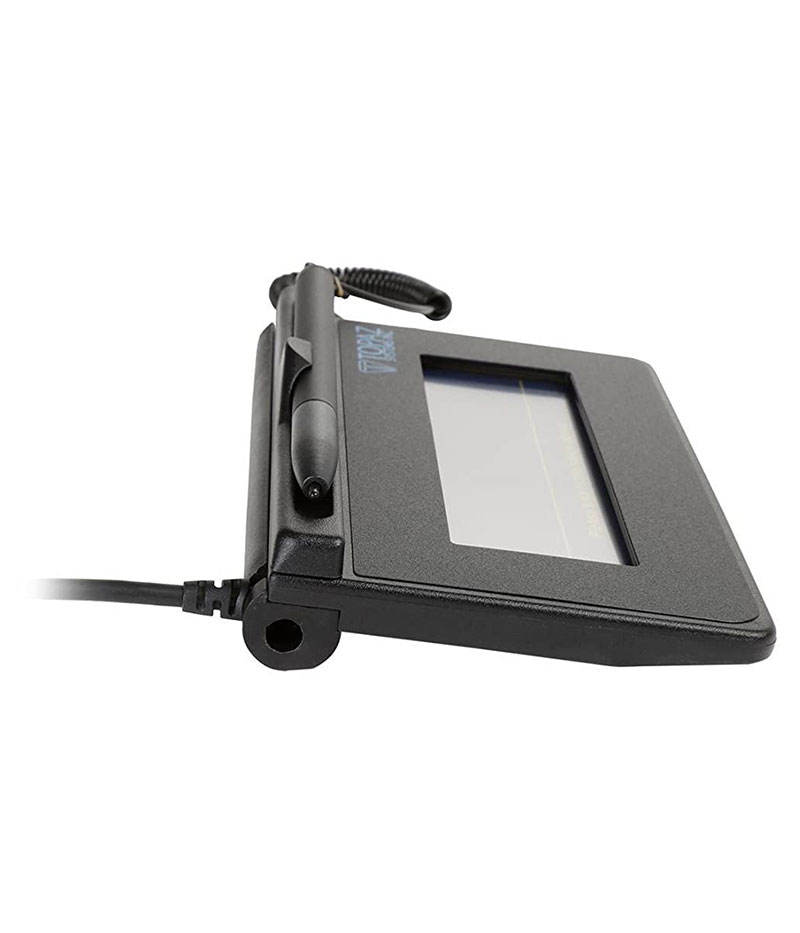

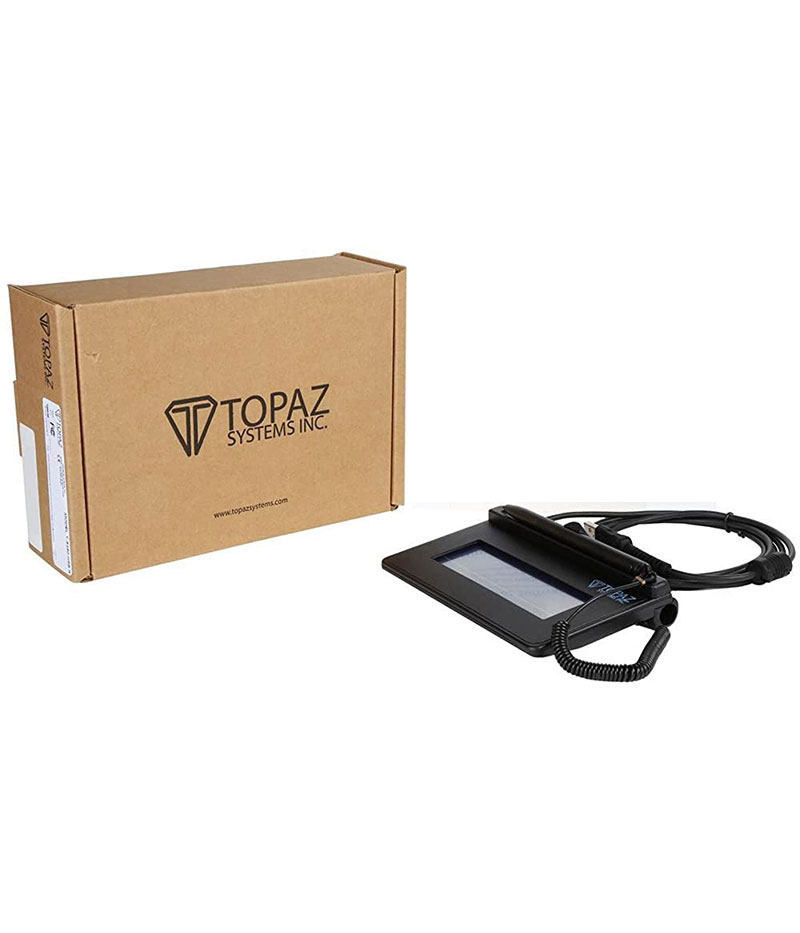

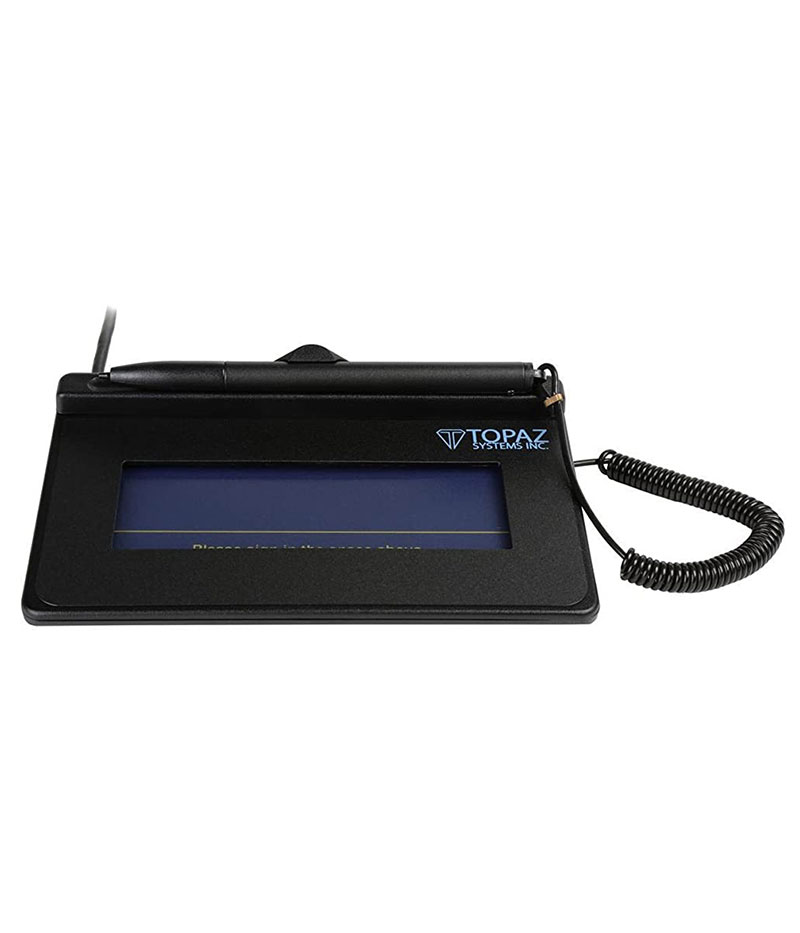

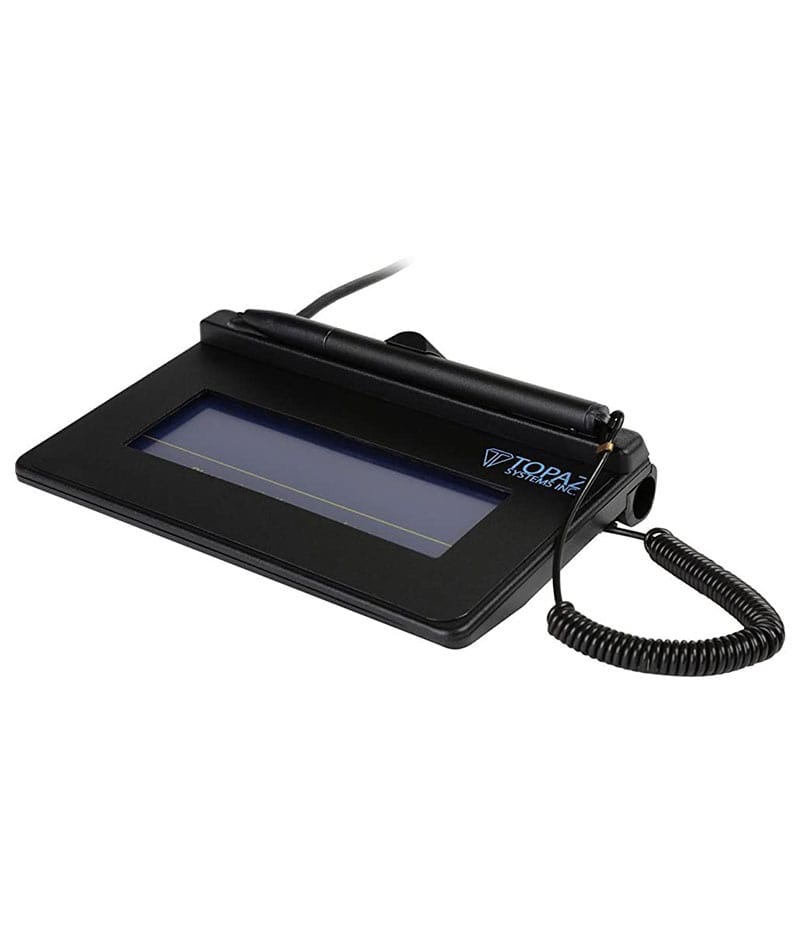

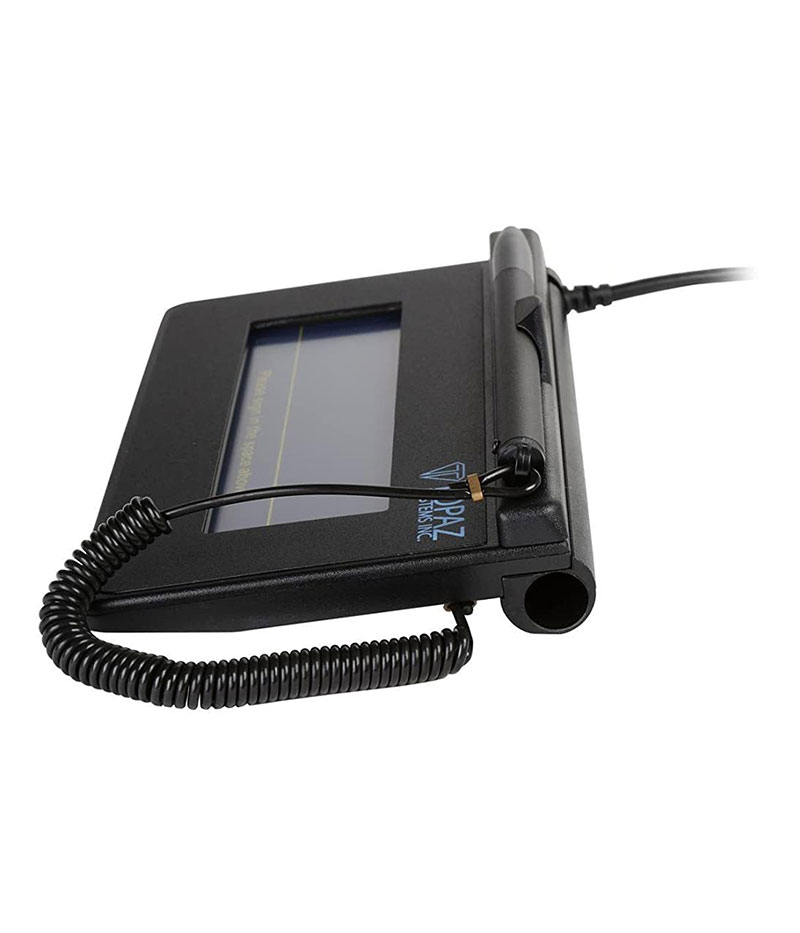

SigLite Backlit LCD 1×5 with USB data output is Topaz’s low-cost pressure-sensitive electronic signature capture pad. SigLite features all the high-quality biometric and forensic capture techniques of a SignatureGem LCD tablet but with a low-cost touchpad and stylus in place of the more rugged digitizing pen and inert tempered glass surface of the SigGem tablet series. Featuring an LCD touchpad and stylus, these models show the signature on the signature pad, as well as the computer screen.

SigLite® LCD 1×5 features all the high-quality biometric and forensic capture techniques of a SignatureGem LCD tablet but with a low-cost touchpad and stylus in place of the more rugged digitizing pen and inert tempered glass surface of the SigGem tablet series.

The Backlit LCD model has a 1″ x 5″ transflective LCD screen with a bright backlight for improved viewing in any ambient lighting conditions.

*Signatures appear on the pad screen under-the-pen as the user signs. In addition, the LCD display can be used to display information to the user, and can also display on-screen buttons, hot-spots and checkboxes.

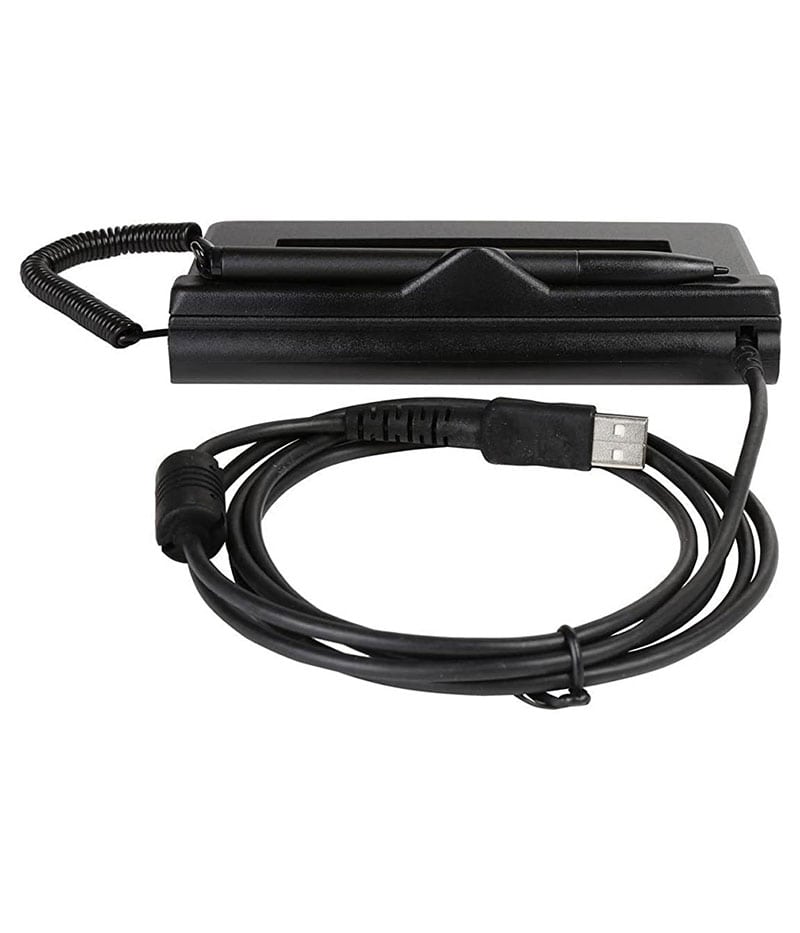

The “-HSB” model is a USB-connected device which uses the Human Interface Device (HID) class of USB driver built into Microsoft Windows and other leading operating systems and computers.

This model has a two-year Manufacturer’s Warranty. However, even after this warranty period has passed (or if the repair is outside the terms of the warranty) we can offer a lifetime service to repair or refurbish the unit (if possible) for a modest charge.

Technical Data

Warranty	2-years, with renewal option
Sensor	3rd-generation touch-screen, Rated to 1 million signatures
Pen	Rugged, passive pen & tether, Patented, battery-less
Resolution & Conversion Rate	Exceeds industry standards, Programmable PPI
Dimensions	6.0” x 3.8” x 1.4” \| 152mm x 95mm x 36mm
Unit Weight	300g
Boxed Weight	500g
Box Dimensions	235x 165x 75mm
Signing Area	4.4” x 1.3” \| 112mm x 33mm
Authentication Capability	Forensic quality. SIG data capable of examination and authentication with our software
